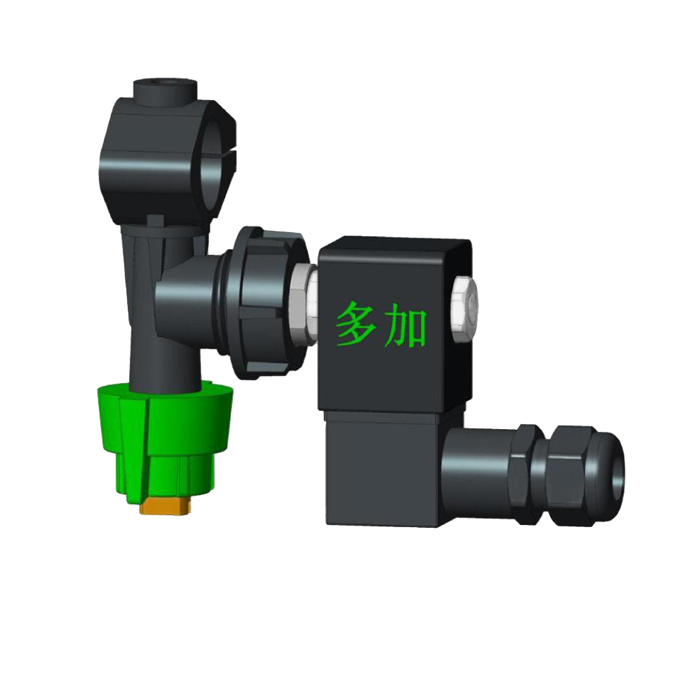

PWM Variable Rate Nozzle
● Wide flow rate adjustment range;
● Fast response time;
● Constructed from stainless steel or ABS material for excellent corrosion resistance and long service life;
● Normally closed (NC) solenoid valve to prevent dripping and leakage;
● Available in 12V or 24V;
● Ideal for precision spraying applications, including variable rate spraying, target-specific spraying, prescription application, and other spray switching controls.

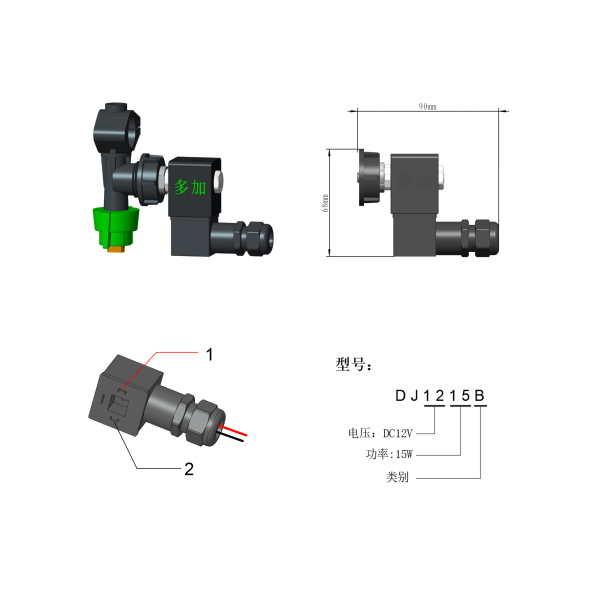

DJ1215B PWM Variable Rate Nozzle
Features:
Solenoid switch valve
Operating voltage is DC12V
Maximum pressure rating is 0.5Mpa
All wetted parts are made of stainless steel or fluororubber
| Wiring Diagram | |
| PIN Terminal | Function |
| 1 | (+) Positive |
| 2 | (-) Positive |
| Note: The (+) and (-) terminals are interchangeable. | |
DJ2415B PWM Variable Rate Nozzle
Features:
Solenoid switch valve
Operating voltage is DC24V
Maximum pressure rating is 0.5Mpa
All wetted parts are made of stainless steel or fluororubber
| Wiring Diagram | |
| PIN Terminal | Function |
| 1 | (+) Positive |
| 2 | (-) Positive |
| Note: The (+) and (-) terminals are interchangeable. | |
