Air-Assisted Spray Boom FM-12/FM-16/FM-20 | Duojia

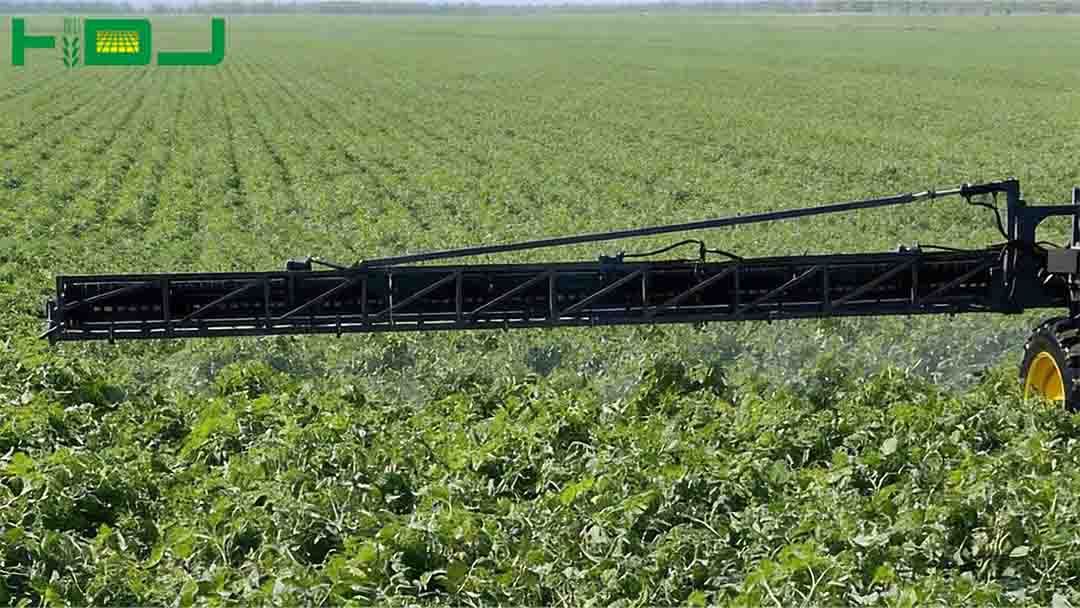

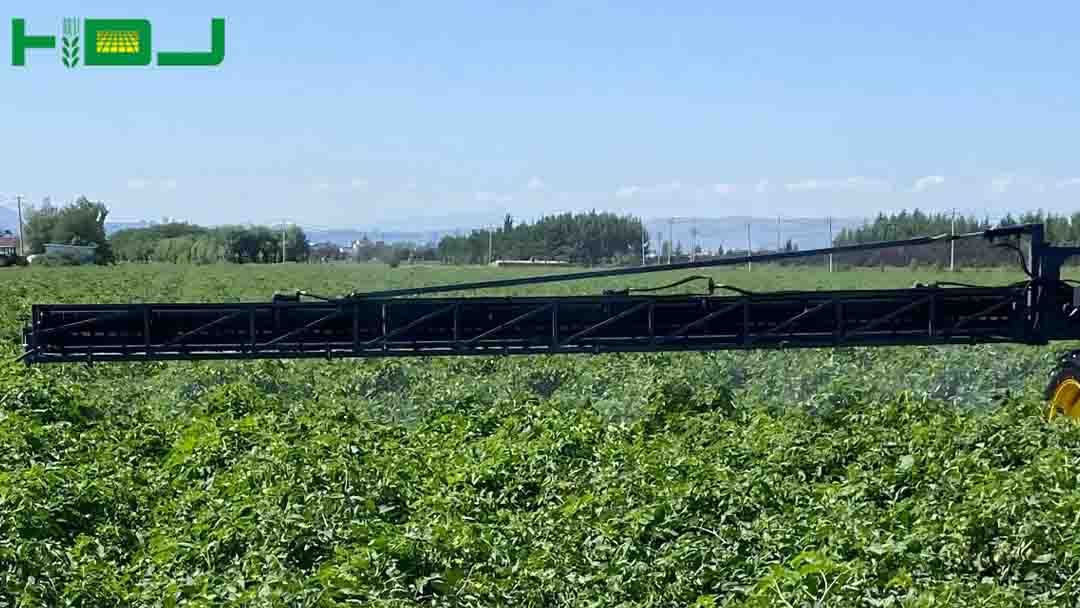

The Air-Assisted Spray Boom is a wind curtain agricultural spraying boom developed for field-crop spraying applications. The FM series combines a spray boom with a transverse flow fan system to provide an air-assisted spraying configuration around the nozzle area.

Three configurations are available: FM-12, FM-16 and FM-20. They provide boom lengths of 12 m, 16 m and 20 m respectively, with corresponding differences in airflow volume, total fan power, nozzle quantity and operating efficiency.

The spray boom uses 110° flat fan nozzles at a 50 cm spacing. The fan system can use either a DC48V brushless motor or an AC220V motor, while hydraulic systems are used for boom lifting and folding.

The FM series is intended for agricultural spraying operations involving crops such as rice, wheat, cotton, corn and soybean. The available configurations allow buyers to select a boom length and fan capacity according to their field operation requirements.

For B2B buyers, the product is relevant when an agricultural spraying system requires a boom-mounted wind curtain or air-assisted configuration rather than a conventional spray boom alone.

Product Highlights

• Available in FM-12, FM-16 and FM-20 configurations.

• Boom lengths of 12 m, 16 m and 20 m are available.

• Uses a transverse flow fan for the wind curtain system.

• Equipped with 110° flat fan nozzles with 50 cm spacing.

• Supports hydraulic boom lifting and hydraulic boom folding.

• Fan drive options include DC48V brushless motor and AC220V motor.

• Designed for spraying applications involving rice, wheat, cotton, corn and soybean.

Key Product Features

Transverse Flow Fan Wind Curtain

The FM series uses a transverse flow fan structure as the air-generation component of the wind curtain system. The fan provides an airflow volume that corresponds to the selected boom configuration.

This configuration is intended to support air-assisted spraying around the spray boom and nozzle area. Buyers evaluating the product should consider the fan configuration together with the required boom length and crop application.

110° Flat Fan Nozzles

The spray boom uses 110° flat fan nozzles with a nozzle spacing of 50 cm. This provides a defined nozzle arrangement along the boom for agricultural spraying applications.

The nozzle configuration is particularly relevant when buyers are evaluating spray coverage requirements and the integration of the boom with the intended spraying operation.

Hydraulic Boom Lifting

The boom lifting system uses hydraulic lifting. This allows the boom assembly to be raised or lowered through the hydraulic mechanism provided in the product configuration.

For equipment integrators and agricultural machinery buyers, the hydraulic lifting arrangement is an important configuration point to confirm during equipment matching.

Hydraulic Boom Folding

The FM series uses hydraulic folding for the spray boom. The folding function is part of the boom structure and should be considered when evaluating equipment installation, field operation and transport requirements.

The actual installation and integration arrangement should be confirmed according to the customer's equipment configuration.

Multiple Boom Length Configurations

The FM series is available in three boom lengths: 12 m, 16 m and 20 m.

The three configurations also have different fan airflow volumes, fan power levels, nozzle quantities and listed operating efficiencies. This gives buyers several configuration choices for different field spraying requirements.

Two Fan Drive Options

The fan drive form is specified as either a DC48V brushless motor or an AC220V motor.

The appropriate drive configuration should be confirmed according to the supporting agricultural machinery, available power system and actual equipment integration requirements.

Product Benefits

The FM series provides a boom configuration that combines conventional nozzle spraying with a fan-based wind curtain system. This can be considered by buyers looking for an air-assisted approach to agricultural spraying rather than a conventional boom arrangement alone.

The three available boom lengths allow buyers to select a configuration according to the intended operating width. The corresponding fan airflow and power configurations also provide different equipment configurations within the same FM product series.

Hydraulic lifting and folding provide integrated boom movement functions, while the 110° flat fan nozzle arrangement and 50 cm nozzle spacing establish a defined spraying layout.

For agricultural machinery manufacturers, equipment integrators and B2B distributors, the product can also be evaluated as a spraying boom component for integration into a suitable agricultural spraying platform, subject to actual equipment design and configuration.

How the Product Works

The FM series combines a spray boom, spray nozzles and a transverse flow fan.

During operation, the spray boom provides the mounting structure for the 110° flat fan nozzles. The nozzles are arranged at 50 cm intervals along the boom.

At the same time, the transverse flow fan generates airflow for the wind curtain system. The fan is driven by either a DC48V brushless motor or an AC220V motor, depending on the selected configuration.

The boom is raised and lowered hydraulically, and hydraulic folding is used for the boom folding function.

The FM-12, FM-16 and FM-20 versions use different boom lengths and corresponding fan airflow and power configurations. Buyers should therefore select the configuration based on the required spraying width, crop application and supporting equipment.

Technical Specifications

Product Configuration

The FM series is available in three product configurations:

• FM-12: 12 m boom configuration with 29,000 m³/h airflow volume, 3 kW total fan power and 25 nozzles.

• FM-16: 16 m boom configuration with 40,000 m³/h airflow volume, 4.5 kW total fan power and 33 nozzles.

• FM-20: 20 m boom configuration with 47,000 m³/h airflow volume, 5.5 kW total fan power and 41 nozzles.

The three configurations share the same specified transverse flow fan structure, 110° flat fan nozzle type, 50 cm nozzle spacing, hydraulic lifting, hydraulic folding and fan drive options.

No separate optional equipment is specified in the available product information. Buyers should confirm the actual standard configuration and any application-specific requirements with the manufacturer before ordering.

Applications

Rice Spraying

The FM series is specified for rice spraying applications. Buyers can consider the appropriate boom configuration according to the required spraying width and supporting agricultural machinery.

Wheat Spraying

The product is also specified for wheat applications. The air-assisted wind curtain configuration can be evaluated where an agricultural spraying boom with an integrated fan system is required.

Cotton Spraying

Cotton is one of the specified applicable crops for the FM series. The product information identifies the FM-12, FM-16 and FM-20 configurations in relation to different Xinjiang cotton film-width arrangements.

Corn and Soybean Spraying

The FM series is also specified for corn and soybean spraying. Model selection should be based on the required boom length, crop conditions, supporting equipment and intended spraying operation.

Operating Environment

The FM series is intended for agricultural field-crop spraying applications involving rice, wheat, cotton, corn and soybean.

The selection of boom length should take into account the actual crop, field operation and required spraying width. The three available configurations provide 12 m, 16 m and 20 m boom lengths.

The specified maximum permitted travel speed is ≤15 km/h. Buyers should also evaluate the physical installation space and supporting machinery requirements before integrating the spray boom.

Actual suitability depends on field conditions, crop conditions, supporting equipment and the selected configuration.

Is This Product Suitable for Your Operation?

The FM series may be considered when your agricultural spraying operation requires an air-assisted wind curtain spray boom for field crops.

This product may be suitable when:

• The target crops include rice, wheat, cotton, corn or soybean.

• A 12 m, 16 m or 20 m spray boom is appropriate for the operation.

• An integrated transverse flow fan is required.

• The application requires 110° flat fan nozzles at 50 cm spacing.

• Hydraulic boom lifting and folding are required.

• The supporting equipment can accommodate the specified fan drive configuration.

• The buyer needs to evaluate different airflow and fan power configurations.

Selection should be based on the required spraying width, crop application, supporting machinery, power arrangement and actual field requirements.

Buyers should confirm equipment integration requirements before purchase, particularly where the spray boom is being installed on an existing agricultural machine.

Product Selection Guide

When selecting an FM series wind curtain spray boom, professional buyers should first identify the required boom length.

The FM-12 configuration provides a 12 m boom, while the FM-16 and FM-20 provide 16 m and 20 m boom lengths. The selected configuration also determines the specified airflow volume, total fan power and nozzle quantity.

Buyers should then evaluate:

• Required boom length.

• Target crop.

• Required spraying operation.

• Available supporting equipment.

• Fan power requirements.

• Available electrical configuration.

• Required nozzle arrangement.

• Hydraulic lifting requirements.

• Hydraulic folding requirements.

• Field operating conditions.

• Required operating efficiency.

• Equipment integration requirements.

For B2B procurement, buyers should provide the intended crop, equipment platform, required boom length and operating conditions when requesting technical confirmation.

Maintenance Considerations

The FM series contains a spray boom, flat fan nozzles, hydraulic lifting and folding mechanisms, and a transverse flow fan with an electric drive.

Routine maintenance should therefore take into account the condition of the spraying components, fan system, hydraulic mechanisms and electrical drive components.

The nozzle system should be kept in suitable operating condition, while the fan and its drive system should be checked according to the actual equipment manufacturer's maintenance requirements.

Because specific maintenance intervals are not provided, buyers should follow the manufacturer's technical documentation rather than applying an assumed service schedule.

Common Problems and Practical Considerations

Problem: The selected boom configuration does not match the intended spraying width.

Possible Cause: The boom length was selected without adequately considering the actual field operation.

Practical Consideration: Confirm the required operating width and select between FM-12, FM-16 and FM-20 accordingly.

Problem: The fan drive configuration does not match the supporting equipment.

Possible Cause: The electrical requirements of the supporting agricultural machine were not confirmed before procurement.

Practical Consideration: Confirm whether the required configuration should use the DC48V brushless motor or AC220V motor.

Problem: The spray boom cannot be integrated as expected with existing equipment.

Possible Cause: Hydraulic lifting, hydraulic folding or other installation requirements were not reviewed in advance.

Practical Consideration: Provide the supporting equipment information to the supplier for technical confirmation before ordering.

Problem: The selected model does not provide the required application configuration.

Possible Cause: Boom length, fan airflow, nozzle quantity and application requirements were evaluated separately.

Practical Consideration: Evaluate the complete FM configuration rather than considering boom length alone.

What Buyers Should Check Before Purchasing

Before purchasing an FM series Air-Assisted Spray Boom, B2B buyers should confirm:

• Required boom length.

• Target crop and spraying application.

• Required operating width.

• Supporting agricultural machinery.

• Working pressure requirements.

• Required fan airflow configuration.

• Fan power requirements.

• DC48V or AC220V fan drive requirement.

• Nozzle type and nozzle spacing.

• Nozzle quantity.

• Hydraulic lifting requirements.

• Hydraulic folding requirements.

• Maximum permitted travel speed.

• Expected operating efficiency.

• Field operating conditions.

• Equipment integration requirements.

• Technical documentation.

• Actual standard configuration.

• Any application-specific configuration requirements.

• Packaging and shipping requirements for export procurement.

For a quotation or technical review, buyers should provide the intended crop, required boom length, supporting machine information, quantity and delivery destination where applicable.

Manufacturer and Supply Capability

HeFei Duojia Agricultural Technology Co., Ltd. is a Chinese manufacturer specializing in intelligent agricultural equipment and precision fertilizer and pesticide application technologies. Since 2012, the company has developed agricultural machinery, intelligent spraying systems, precision application components and customized equipment solutions. Duojia has applied for more than 230 national patents covering areas including precision spraying, intelligent agricultural machinery, variable-rate application, control systems and related technologies. Its development scope includes complete agricultural equipment and core spraying components, supporting technology development, field validation and application-specific equipment development.

FAQ

What is the FM series Air-Assisted Spray Boom?

Answer: The FM series is a wind curtain agricultural spray boom using a transverse flow fan together with 110° flat fan nozzles. It is available in FM-12, FM-16 and FM-20 configurations.

What are the FM-12, FM-16 and FM-20 boom lengths?

Answer: FM-12 has a 12 m boom, FM-16 has a 16 m boom and FM-20 has a 20 m boom.

What crops can the FM series spray?

Answer: The specified applicable crops include rice, wheat, cotton, corn and soybean. The product information also identifies the three configurations in relation to different Xinjiang cotton film-width arrangements.

What type of fan does the FM series use?

Answer: The FM series uses a transverse flow fan. The specified fan drive options are a DC48V brushless DC motor or an AC220V AC motor.

What type of nozzles are used on the spray boom?

Answer: The specified nozzle type is a 110° flat fan nozzle, with a nozzle spacing of 50 cm.

Does the FM series use hydraulic boom lifting and folding?

Answer: Yes. The specified boom lifting method is hydraulic lifting, and the specified boom folding method is hydraulic folding.

How should I choose between FM-12, FM-16 and FM-20?

Answer: Selection should be based on the required boom length, target crop, spraying operation, supporting machinery, fan requirements and field conditions. Buyers should confirm the required configuration with the manufacturer before ordering.

What information should I provide when requesting a quotation?

Answer: Buyers should provide the intended crop, required boom length, supporting agricultural equipment, desired configuration, quantity and delivery destination. Additional technical information can be discussed according to the application.

Request Product Information

For product specifications, configuration confirmation or a B2B quotation for the FM series Air-Assisted Spray Boom, contact the manufacturer with the following information where available:

• Target crop.

• Spraying application.

• Required boom length.

• Supporting agricultural machine.

• Preferred FM-12, FM-16 or FM-20 configuration.

• Required fan drive configuration.

• Quantity required.

• Target market.

• Delivery destination.

• Any specific equipment integration requirements.

You can also request technical documentation and discuss application-specific requirements before procurement.
