| Trade Term: | FOB,CFR,CIF |
|---|---|
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Delivery Date: | within 40 days after receipt of down payment |
| Product Type: | Remote-Control Self-Propelled Spray Rod Sprayer |
| Product Category: | Agricultural Spraying Equipment |
| Machine Type: | Self-Propelled Agricultural Sprayer |
| Model: | 3WYP-160B | Main Function: | Agricultural Spraying |
|---|---|---|---|
| Operating Method: | Remote-Controlled Operation | Structural Type: | Self-Propelled |
| Drive Type: | Three-Wheel Drive | Steering Type: | Front Steering |
| Spraying Type: | Spray Rod Spraying |

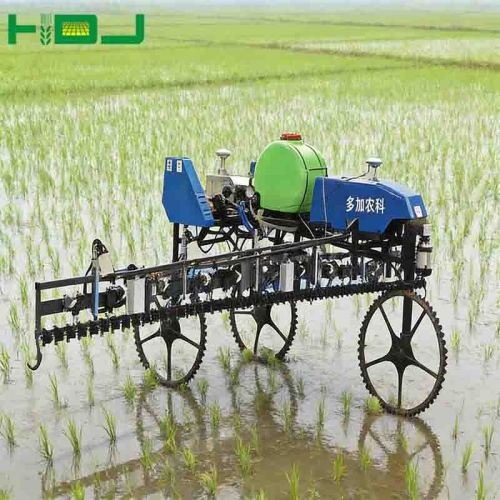

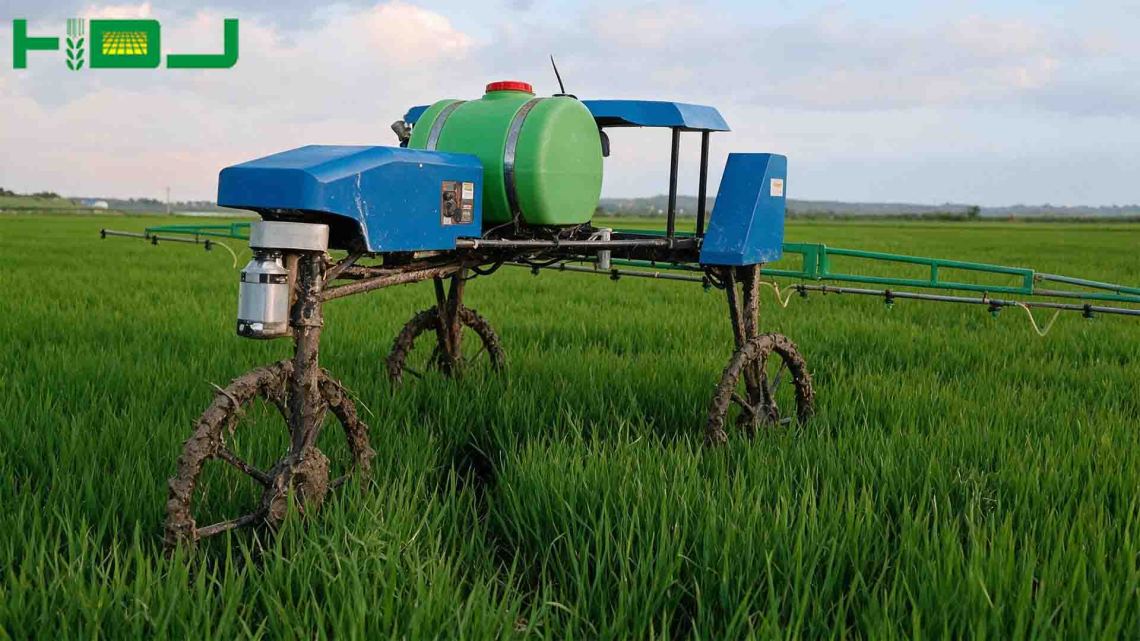

The 3WYP-160 and 3WYP-160B are intelligent self-propelled boom sprayers designed for crop protection and fertilization in both paddy and dry land. The product range combines remote control and man-machine separation, while the 3WYP-160 is identified as a Beidou Navigation Green Efficient Sprayer and the 3WYP-160B as a Remote-Controlled Self-Propelled Boom Sprayer.
Manufactured by DUOJIA, an agricultural machinery manufacturer, the machines use high-precision nozzles for fine droplets and uniform spraying. The equipment is designed for pest and disease control, fertilization, and spraying of herbicides, insecticides, fungicides, and water-soluble fertilizers.
Remote control and man-machine separation: Remote-controlled operation supports separation between the operator and machine during spraying.
High-precision nozzles: The nozzles provide excellent atomization and fine droplets. Target-oriented application can save more than 50% of water and chemicals.
Lightweight body with strong power: The lightweight structure is designed for good field passability, while the narrow wheel design of 2–4 cm reduces crop damage.
Three-wheel drive and front-wheel steering: The self-propelled structure combines three-wheel drive with front-wheel steering for field operation.
Beidou navigation: The documented Beidou navigation remote control accuracy is ≤ 2.5 cm.
Simple operation and low maintenance: The source describes the machine as easy to learn and operate, with low maintenance cost compared with aircraft or conventional ground machinery of similar efficiency.
ParameterUnitSpecification
| Model Name | / | 3WYP-160 Remote-Controlled Self-Propelled Boom Sprayer |
| Structure Type | / | Self-propelled |
| Drive Type | / | Three-wheel drive |
| Steering Type | / | Front-wheel steering |
| Overall Dimensions | mm | 2940 × 2530 × 1740 |
| Rated Tank Capacity | L | 160 |
| Boom Length | m | 7 |
| Working Pressure | MPa | 0.2–0.5 |
| Max. Travel Speed | km/h | 9 |
| Battery Capacity | Ah | 50 |
| Rear Wheel Track | mm | 1750–2100 (adjustable) |
| Ground Clearance | m | 1.1 |
| Working Efficiency | mu/h | 40 |
| Beidou Navigation Remote Control Accuracy | cm | ≤ 2.5 |
Technical Note: 1 mu ≈ 0.0667 ha. Specifications are subject to change without notice. Please confirm final parameters with the DUOJIA sales team before system design.
The 3WYP-160 / 3WYP-160B is documented for:
Pest and disease control for field crops and cash crops
Fertilization operations
Herbicide, insecticide, fungicide, and water-soluble fertilizer spraying
Spraying in paddy fields and dry land
Precision agriculture using Beidou navigation and remote control
Remote control supports man-machine separation during operation.
High-precision nozzles provide fine droplets and uniform spraying.
Target-oriented application can save more than 50% of water and chemicals.
The 2–4 cm narrow wheel design reduces crop damage.
Lightweight construction and strong power support field passability.
Beidou navigation remote control accuracy is ≤ 2.5 cm.
Documented working efficiency is 40 mu/h.
The machine is suitable for both paddy and dry land operations.
When making an inquiry, please specify:
Model: 3WYP-160 (Beidou Navigation Green Efficient Sprayer) or 3WYP-160B (Remote-Controlled Self-Propelled Boom Sprayer)
Quantity required
Any additional navigation or control requirements
The 3WYP-160 and 3WYP-160B are self-propelled boom sprayers designed for pest and disease control and fertilization in paddy and dry land. The product range uses remote control and man-machine separation.
The rated tank capacity is 160 L.
The working pressure is 0.2–0.5 MPa, and the maximum travel speed is 9 km/h.
Yes. The rear wheel track is adjustable from 1750–2100 mm.
The documented Beidou navigation remote control accuracy is ≤ 2.5 cm.
The product is documented for pest and disease control and fertilization of field crops and cash crops. It can be used for herbicide, insecticide, fungicide, and water-soluble fertilizer spraying in both paddy fields and dry land.
Contact DUOJIA for product information, technical parameter confirmation, quantity requirements, and additional navigation or control requirements for the 3WYP-160 / 3WYP-160B self-propelled boom sprayer.
