| Trade Term: | FOB,CFR,CIF |
|---|---|
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Product Type: | Agricultural Spraying Robot |
| Product Category: | Plant Protection Equipment |
| Machine Type: | Crawler Plant Protection Robot |
| Model: | 3WDZ-200 |
| Main Function: | Agricultural Spraying / Plant Protection | Operating Method: | Remote Controlled |
|---|---|---|---|
| Structure Type: | Crawler Self-Propelled | Steering Type: | Differential Steering |
| Spraying Type: | Fan-Shaped Nozzle Spraying | Spray Width: | 6-10 m |

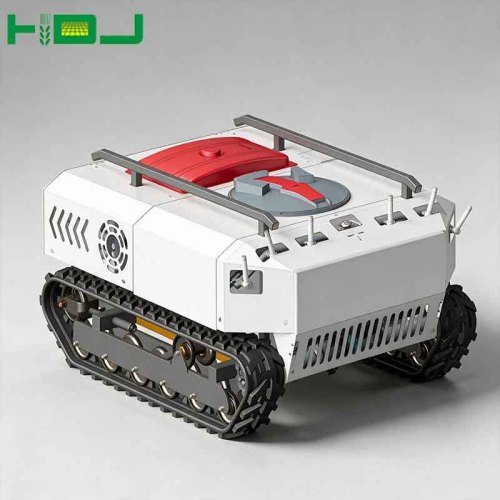

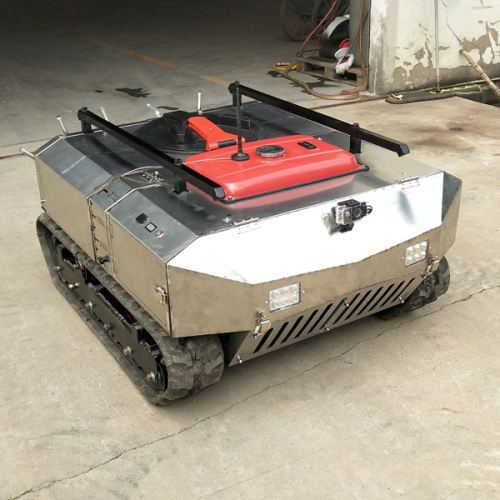

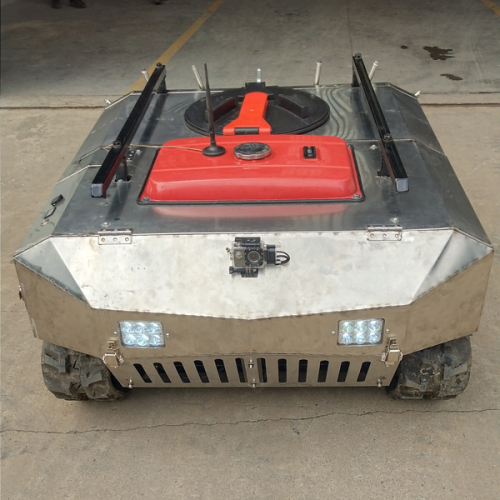

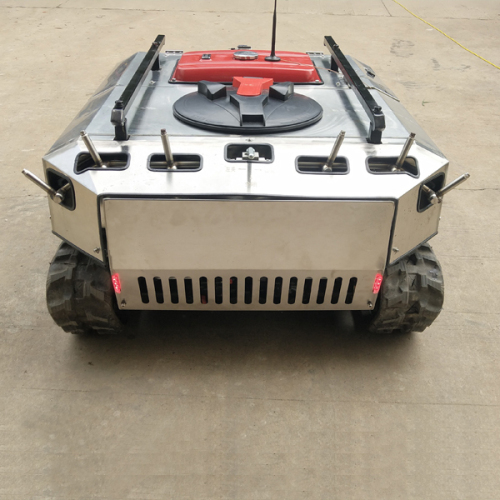

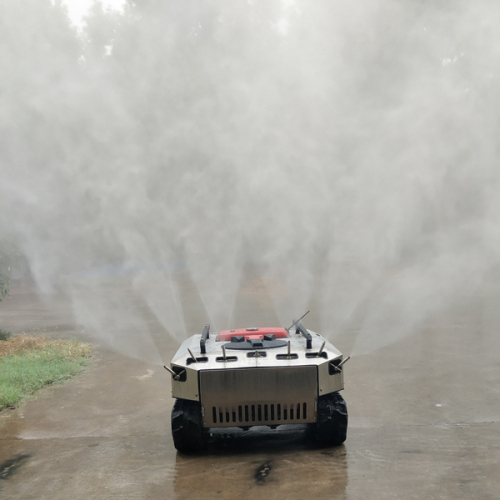

The 3WDZ-200 Crawler Spraying Robot is a remote-controlled crawler plant protection machine designed for agricultural spraying operations. The machine combines a crawler self-propelled structure with differential steering and a remote-control operating method, providing a mobile platform for field plant protection work.
The 3WDZ-200 is equipped with a 200 L rated spray tank, a 6–10 m spray width, an 8–12 MPa working pressure range, and a liquid pump with a rated flow of 25 L/min. Its spraying system uses six fan-shaped nozzles, with 40°, 65°, and 80° options available for the nozzle form.
The crawler configuration, 150 mm minimum ground clearance, and specified maximum operating slope of 30° make the machine suitable for buyers evaluating crawler-based agricultural spraying equipment for field plant protection applications. The machine is remotely controlled, with a specified effective remote-control distance of ≤500 m.
For B2B buyers, the 3WDZ-200 can be considered as a complete agricultural spraying robot when the required spray width, tank capacity, crawler configuration, spraying pressure, nozzle configuration, and remote-control requirements correspond with the intended application.
Remote-controlled crawler self-propelled structure for agricultural spraying operations.
Differential steering configuration for machine direction control.
200 L rated spray tank capacity.
Adjustable 6–10 m spray width.
8–12 MPa working pressure range.
25 L/min rated liquid pump flow.
Six fan-shaped spray nozzles with 40°, 65°, and 80° options.
Remote-control effective distance specified as ≤500 m.

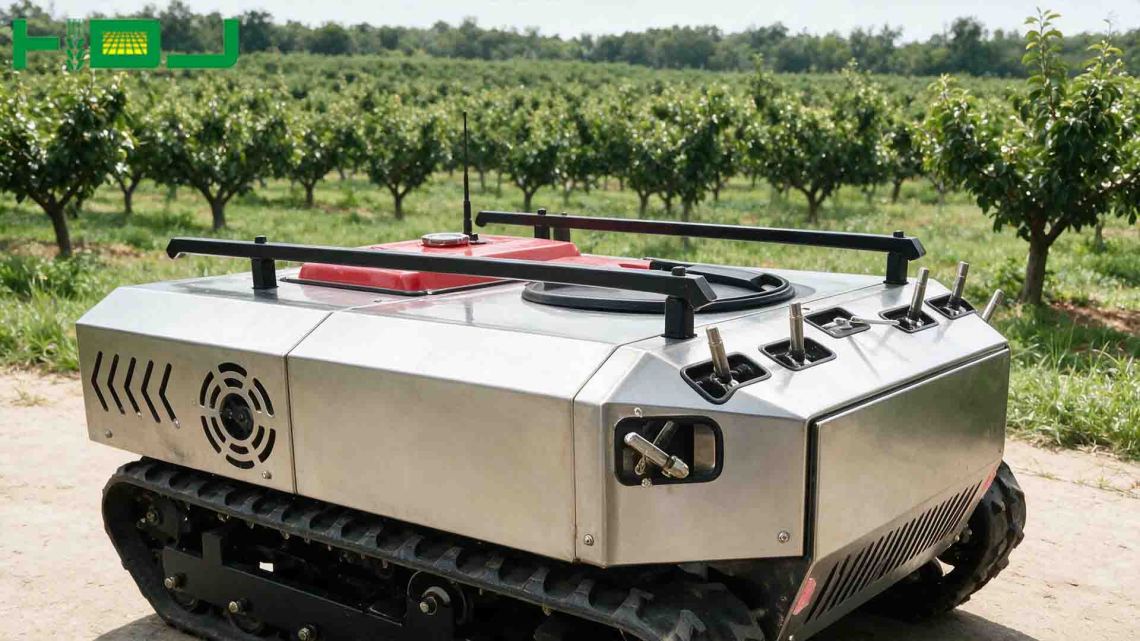

The 3WDZ-200 uses a crawler self-propelled structure rather than a wheeled chassis. The specified crawler configuration is 180×72×38, with a minimum ground clearance of 150 mm. These characteristics define the machine's basic mobility configuration for its intended agricultural spraying operation.
The machine is specified as a remote-controlled crawler plant protection robot. The technical data gives a remote-control effective distance of ≤500 m. This allows the operator to control the machine remotely rather than operating from a conventional onboard driving position.
The product information supports remote-controlled operation. It does not establish autonomous navigation, automatic path planning, GPS guidance, obstacle avoidance, machine vision, or AI-based operation.
The steering type is specified as differential steering. This is an integral part of the machine's crawler-based operating configuration and should be considered when evaluating maneuverability requirements for the intended field environment.
The 3WDZ-200 has a rated spray tank capacity of 200 L. Buyers should consider the 200 L capacity together with the required application task, spray width, operating conditions, and procurement requirements when evaluating whether the machine is suitable for a particular operation.
The specified spray width is 6–10 m. This provides a range for buyers to consider when matching the machine to their intended spraying operation and field working requirements.
The machine is equipped with six spray nozzles. The nozzle form is specified as fan-shaped, with 40°, 65°, and 80° options available. Buyers should confirm the required nozzle configuration according to their intended spraying application.
The 3WDZ-200 uses a liquid pump with a rated flow of 25 L/min. The specified working pressure range is 8–12 MPa. These parameters are important when evaluating the spraying system against the requirements of the intended application.
The 3WDZ-200 provides a crawler-based alternative for buyers looking for remote-controlled agricultural spraying equipment. Its self-propelled crawler structure integrates mobility and spraying functions into one machine.
The 200 L rated spray tank provides a defined liquid capacity for procurement and application planning. The 6–10 m spray width allows buyers to evaluate the machine against different working-width requirements.
The remote-control configuration separates the operator from the machine during operation. The product information specifically identifies remote-controlled operation and a ≤500 m effective remote-control distance.
The differential steering configuration and crawler chassis are also important when considering the machine's operating method and field mobility requirements.
From a procurement perspective, the defined tank capacity, spray width, working pressure, pump flow, nozzle quantity, generator output, crawler specification, and remote-control distance provide a clear technical basis for comparing the product with application requirements.

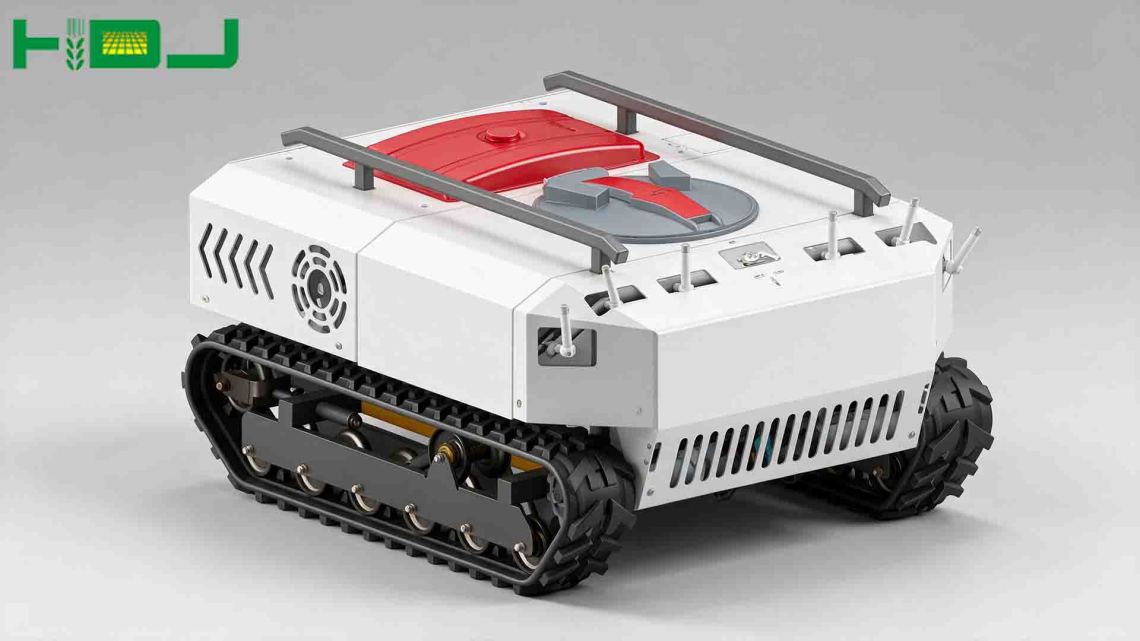

The 3WDZ-200 combines a crawler self-propelled chassis, differential steering, generator set, liquid pump, spray tank, and nozzle system.
The crawler structure provides the machine's self-propelled movement. Differential steering is specified as the steering method. The generator set has a maximum power of 5 kW and a DC48 output voltage according to the supplied technical data.
For spraying, the machine has a 200 L rated spray tank. Liquid is supplied through the specified liquid pump, which has a rated flow of 25 L/min. The spraying system uses six fan-shaped nozzles, with 40°, 65°, and 80° nozzle forms available.
The machine is operated remotely, with the specified effective remote-control distance of ≤500 m.
The supplied product information does not specify autonomous navigation, GPS positioning, machine vision, AI control, automatic path planning, or automatic spraying decisions. These functions should therefore not be assumed when evaluating the product.
| Item | Unit | Specification |
| Model Name | / | 3WZD-200 Crawler Plant Protection Robot |
| Structure Type | / | Crawler Self-Propelled (Remote Controlled) |
| Steering Type | / | Differential Steering |
| Overall Dimensions | mm | 1420×1100×720 |
| Working Pressure | MPa | 8-12 |
| Spray Width | m | 6-10 |
| Rated Spray Tank Capacity | L | 200 |
| Maximum Travel Speed | m/s | 1.06 |
| Maximum Operating Slope | ° | 30° |
| Maximum Generator Set Power | kW | 5 |
| Generator Set Output Voltage | V | DC48 |
| Rated Liquid Pump Flow | L/min | 25 |
| Number of Spray Nozzles | pcs | 6 |
| Nozzle Type | / | Fan-shaped (40°/65°/80° optional) |
| Minimum Ground Clearance | mm | 150 |
| Crawler Specification | / | 180×72×38 |
| Remote-Control Effective Distance | / | ≤500 |

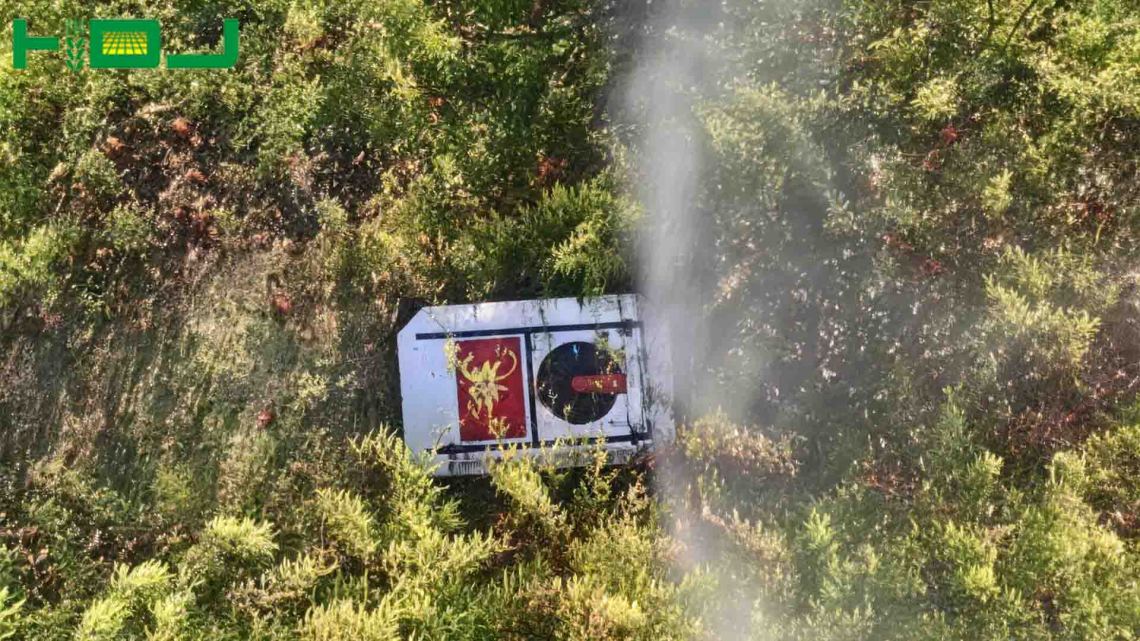

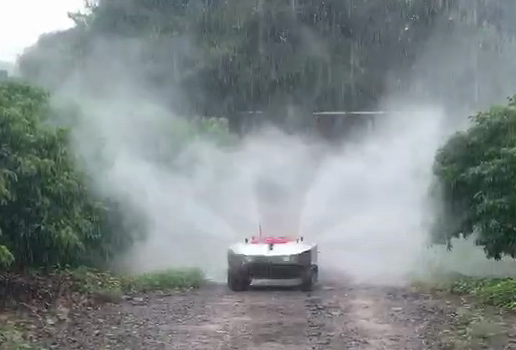

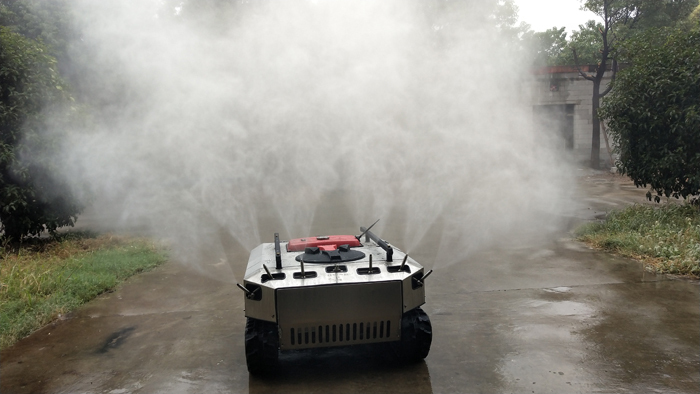

The 3WDZ-200 is designed for agricultural spraying and plant protection operations. Its 200 L rated spray tank, 6–10 m spray width, liquid pump, and six fan-shaped nozzles form the core spraying configuration.
Buyers should evaluate the required spraying task, working width, spray pressure, nozzle configuration, field conditions, and operating method before selecting the machine.
The machine can be considered for field agricultural spraying applications where a crawler self-propelled and remote-controlled configuration is appropriate.
The supplied product information does not identify specific crops. Crop suitability should therefore be confirmed according to the actual application requirements and local operating conditions.
The 3WDZ-200 is particularly relevant when buyers are evaluating a remote-controlled plant protection machine. Its specified remote-control effective distance is ≤500 m.
The machine should not be described as fully autonomous because the available product information only specifies remote-controlled operation.
The crawler configuration should be evaluated according to the actual agricultural operating environment. Buyers should consider field access, terrain, surface conditions, available operating space, crop conditions, and the required spraying width before procurement.
The technical specification identifies a maximum operating slope of 30° and a minimum ground clearance of 150 mm. These are product-specific parameters that should be considered when evaluating field suitability.
The supplied information does not define specific soil conditions, crop-row spacing, weather limits, water-depth limits, or other environmental operating limits. Such requirements should be confirmed with the supplier before purchase.
The 3WDZ-200 may be considered when an agricultural operation requires a crawler-based, remote-controlled spraying machine with a 200 L rated spray tank.
Suitability should be evaluated based on:
The required agricultural plant protection task.
Required spray width.
Required tank capacity.
Required working pressure.
Required liquid pump flow.
Required nozzle configuration.
Field terrain and operating conditions.
Required machine mobility.
Need for remote-controlled operation.
Required remote-control distance.
Desired generator configuration.
Procurement and technical support requirements.
Buyers should confirm that the 6–10 m spray width and 200 L tank capacity correspond to their intended operation. They should also confirm the appropriate fan-shaped nozzle configuration and whether the specified working pressure and pump flow meet their application requirements.
The machine's suitability should be determined from the actual crop, field conditions, spraying task, operating environment, and required equipment configuration.
When evaluating the 3WDZ-200 for procurement, buyers should begin with the intended plant protection application.
The required spray width should be compared with the specified 6–10 m range. Tank capacity should be considered together with the expected spraying operation and field workflow.
The crawler structure and differential steering should be evaluated against the intended operating environment. Buyers should also confirm whether remote-controlled operation and the specified ≤500 m effective remote-control distance meet the requirements of the operation.
The spraying system should be reviewed through its working pressure range, rated liquid pump flow, six-nozzle configuration, and available 40°, 65°, and 80° fan-shaped nozzle options.
Before placing an order, professional buyers should request confirmation of the final machine configuration and any application-specific requirements.
Before purchasing the 3WDZ-200, buyers should confirm:
Product model and exact product configuration.
Crawler self-propelled structure.
Differential steering configuration.
Overall machine dimensions.
Rated spray tank capacity.
Required spray width.
Working pressure requirements.
Liquid pump flow requirements.
Number and type of spray nozzles.
Available nozzle options.
Generator set power and output voltage.
Maximum travel speed.
Maximum operating slope.
Minimum ground clearance.
Crawler specification.
Remote-control effective distance.
Intended crop and plant protection application.
Field and terrain conditions.
Technical documentation.
Configuration and optional equipment requirements.
Supplier technical support.
Export and delivery requirements.
Buyers should provide the supplier with their intended application, crop type, field conditions, required spray width, required capacity, desired configuration, order quantity, target market, and delivery destination when requesting a quotation.
HeFei Duojia Agricultural Technology Co., Ltd. is a Chinese manufacturer specializing in intelligent agricultural equipment and precision fertilizer and pesticide application technologies. Since 2012, the company has developed agricultural machinery, intelligent spraying systems, precision application components, and customized equipment solutions. Duojia and its subsidiaries have applied for more than 230 national patents covering areas including precision spraying and intelligent agricultural machinery. Its development capabilities cover complete agricultural machines and related components, supporting plant protection and precision application equipment development.
The 3WDZ-200 is a crawler self-propelled agricultural plant protection robot with remote-controlled operation. It is designed for agricultural spraying applications and has a 200 L rated spray tank.
The specified spray width is 6–10 m.
The rated spray tank capacity is 200 L.
The product is specified as remote controlled. The supplied technical data gives a remote-control effective distance of ≤500 m.
The 3WDZ-200 uses differential steering.
The machine is equipped with six spray nozzles. The specified nozzle form is fan-shaped, with 40°, 65°, and 80° options.
The specified working pressure is 8–12 MPa.
The supplied product information specifies remote-controlled operation. It does not establish autonomous navigation, GPS guidance, automatic path planning, AI control, or machine vision, so these functions should not be assumed.
For product specifications, configuration confirmation, quotation, or technical discussion regarding the 3WDZ-200 Crawler Spraying Robot, buyers can provide:
Intended agricultural application.
Crop type.
Field and terrain conditions.
Required spray width.
Required spray tank capacity.
Desired nozzle configuration.
Required operating method.
Required quantity.
Target market.
Delivery destination.
The manufacturer can then evaluate the stated requirements and provide the applicable product information and configuration details.
