| Trade Term: | FOB,CFR,CIF,DAT |
|---|---|
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Anhui, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Delivery Date: | within 40 days after... |
| Product Type: | Remote-Controlled Agricultural Sprayer |
| Product Category: | Agricultural Spraying Equipment |
| Model: | 3WYP-50B |
| Machine Type: | Self-Propelled Agricultural Sprayer | Operating Method: | Remote-Controlled |
|---|---|---|---|
| Drive Type: | Four-Wheel Drive | Steering Type: | In-Place Steering |
| Main Function: | Agricultural Spraying | Spray Tank Capacity: | 50 L |
| Spray Boom Configuration: | Vertical Spray Boom; Optional Horizontal Spray Boom |

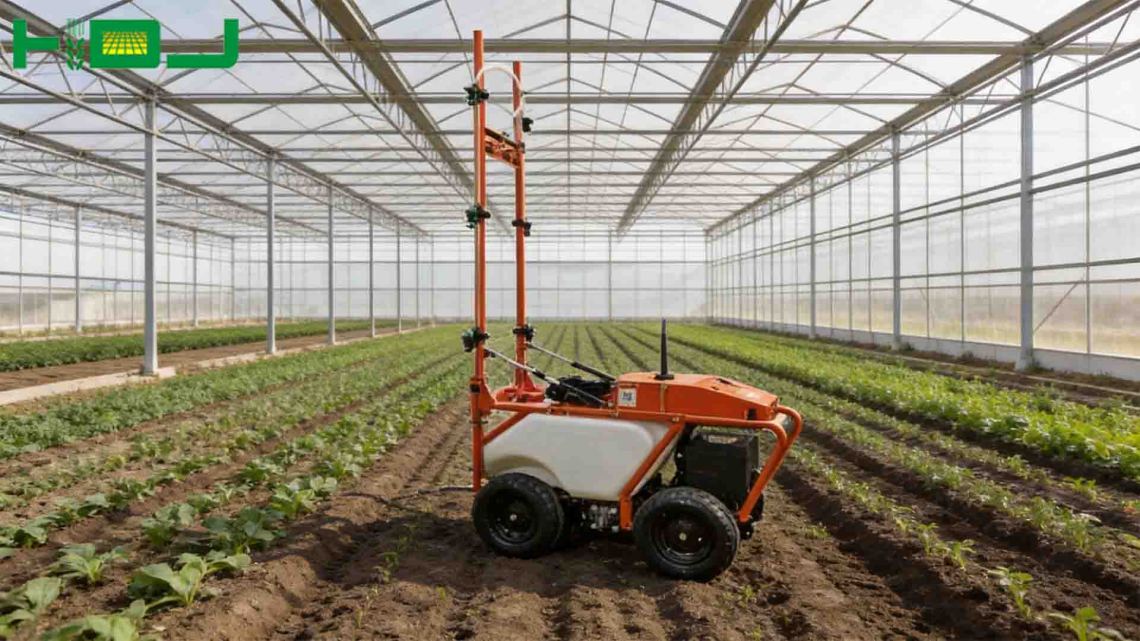

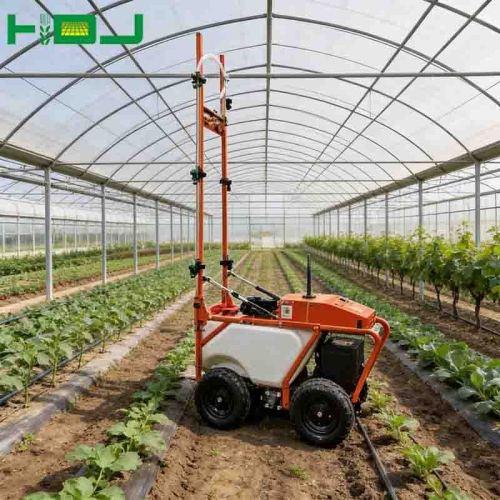

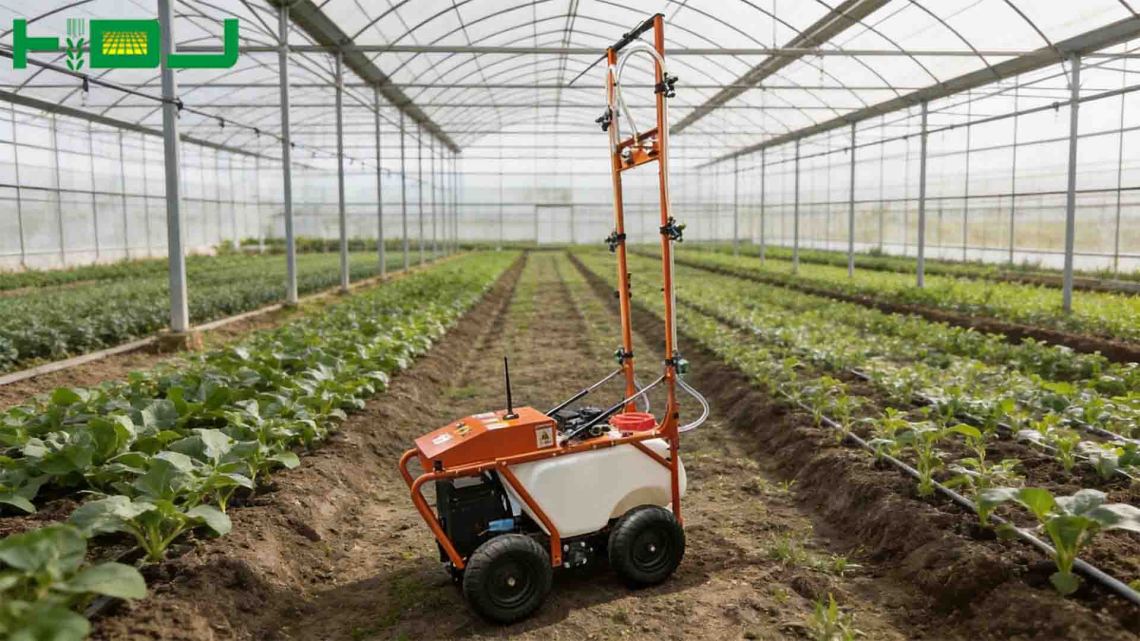

The 3WYP-50B is a remote-controlled agricultural sprayer designed for agricultural spraying and plant protection operations. It uses a self-propelled structure with four-wheel drive and in-place steering, providing a compact machine configuration for agricultural spraying tasks.
The sprayer is equipped with a 50 L spray tank and operates within a specified working pressure range of 0.2–0.5 MPa. Its vertical spray boom height is 2000 mm. A 3500 mm horizontal spray boom is also available as an optional configuration.
The 3WYP-50B has a specified travel speed of 0–3 km/h. Its remote-controlled operating method allows the machine to be operated without requiring the operator to directly occupy the machine during spraying operations. The supplied product information identifies it as a remote-controlled self-propelled agricultural sprayer; autonomous navigation, GPS, machine vision and automatic path planning are not specified.
This model may be considered by agricultural machinery distributors, importers, farm operators and other B2B buyers seeking a compact remote-controlled spraying machine. Final suitability should be evaluated according to the intended crop, field conditions, spraying task and required configuration.
Remote-controlled self-propelled agricultural sprayer configuration
Four-wheel drive system
In-place steering configuration
50 L spray tank capacity
0.2–0.5 MPa specified working pressure range
2000 mm vertical spray boom height
Optional 3500 mm horizontal spray boom
0–3 km/h specified travel speed
The 3WYP-50B uses a remote-controlled operating method. This distinguishes the machine from conventional agricultural sprayers that require the operator to remain directly on the machine during operation.
The supplied information confirms remote-controlled operation but does not specify autonomous navigation, GPS positioning, obstacle avoidance, machine vision or automatic path planning. Buyers requiring these functions should confirm them separately with the supplier.
The machine uses a self-propelled structure with four-wheel drive. This drive configuration forms part of the machine's basic mobility system for agricultural spraying operations.
Four-wheel drive is a product-specific configuration and should be evaluated together with the actual field conditions, access requirements and intended spraying operation.
The 3WYP-50B uses an in-place steering configuration. This steering arrangement is part of the machine's maneuvering system and may be relevant when buyers are evaluating the machine for operations where maneuverability is an important consideration.
Actual suitability depends on the working environment and field layout.
The machine is equipped with a 50 L spray tank. Tank capacity is an important selection factor because it affects the amount of spray liquid that can be carried during an operation.
Buyers should consider the required spraying task, refill arrangements and operating conditions when evaluating whether the 50 L configuration is suitable for their operation.
The specified vertical spray boom height is 2000 mm. The product information also identifies a 3500 mm horizontal spray boom as an optional configuration.
Because the horizontal boom is identified as optional, buyers should confirm whether it is required when requesting a quotation and ensure that the final quotation clearly identifies the selected configuration.
The 3WYP-50B has a specified working pressure range of 0.2–0.5 MPa. This parameter should be considered together with the intended spraying setup and actual operating requirements.
The supplied product information does not provide additional flow-rate, nozzle or application-rate specifications, so these parameters should be confirmed according to the required spraying configuration.
The 3WYP-50B provides a compact remote-controlled configuration for buyers seeking an agricultural spraying machine with specified four-wheel drive and in-place steering.
Its 50 L spray tank provides a defined liquid capacity for the machine, while the 0.2–0.5 MPa working pressure range establishes the specified operating pressure range for the spraying system.
The 2000 mm vertical spray boom height and optional 3500 mm horizontal spray boom provide configuration choices for buyers with different equipment requirements. The optional nature of the horizontal boom should be confirmed during procurement.
The remote-controlled operating method can also be relevant for buyers evaluating operator separation from the machine during spraying operations. However, the available information does not establish autonomous operation or specific safety performance, so buyers should evaluate operator requirements according to their own operating procedures.
The 3WYP-50B combines a self-propelled machine structure with a spraying system and remote-controlled operating method.
The machine's four-wheel drive system provides the specified drive configuration, while in-place steering provides the specified steering method. A 50 L spray tank stores the spraying liquid, and the spraying system operates within the specified working pressure range of 0.2–0.5 MPa.
The spraying equipment includes a 2000 mm vertical spray boom. A 3500 mm horizontal spray boom can be selected as an optional configuration.
The available information does not provide detailed pump, nozzle, flow-rate or spray-control specifications. These technical details should therefore be confirmed with the supplier when the application requires them.
| Item | Unit | Specification |
| Product Model | / | 3WYP-50B |
| Overall Dimensions | mm | 1050 * 580*1650 |
| Structure Type | / | Remote-Controlled Self-Propelled |
| Drive Type | / | Four-Wheel Drive |
| Steering Type | / | In-Place Steering |
| Spray Tank Capacity | L | 50 |
| Matching Power | W | 400+400 |
| Working Pressure | MPa | 0.2-0.5 |
| Vertical Spray Boom Height | mm | 2000 |
| Horizontal Spray Boom Length | mm | 3500 (Optional) |
| Travel Speed | km/h | 0-3 |
The supplied product information identifies the 3WYP-50B as a remote-controlled self-propelled agricultural sprayer with four-wheel drive, in-place steering, a 50 L spray tank and a 2000 mm vertical spray boom.
The horizontal spray boom has a specified length of 3500 mm and is identified as an optional configuration.
Buyers should distinguish the standard product configuration from optional equipment when requesting pricing or technical documentation. The final quotation should clearly identify the selected boom configuration and any other equipment included in the supply.
The available product information supports agricultural spraying and plant protection applications.
The 3WYP-50B is designed as an agricultural spraying machine with a 50 L spray tank and a specified working pressure range of 0.2–0.5 MPa.
Buyers evaluating the machine for agricultural spraying should consider the crop, spraying task, required boom configuration and field conditions before selecting the machine.
The machine is relevant to plant protection operations where agricultural spraying equipment is required. Its remote-controlled operating method, four-wheel drive configuration and in-place steering are product characteristics that buyers can consider when evaluating the machine for their intended operation.
The actual suitability of the machine depends on the application requirements and operating environment.
The 3WYP-50B is intended for agricultural spraying operations. The supplied technical data specifies four-wheel drive, in-place steering and a travel speed of 0–3 km/h.
When evaluating the operating environment, buyers should consider field layout, available operating space, crop conditions, access requirements and the intended spraying task.
The available product information does not specify maximum slope, ground clearance, allowable terrain conditions, weather limits or crop-height limits. These requirements should therefore be confirmed with the supplier before procurement if they are important to the intended operation.
The 3WYP-50B may be considered when a buyer requires a remote-controlled agricultural sprayer with a 50 L spray tank, four-wheel drive and in-place steering.
This model may be suitable for buyers whose application requirements are consistent with its specified spraying configuration and operating parameters.
Before purchasing, buyers should confirm:
Whether a 50 L spray tank capacity is suitable for the intended operation
Whether the 2000 mm vertical spray boom meets the application requirement
Whether the optional 3500 mm horizontal spray boom is required
Whether the 0.2–0.5 MPa working pressure range meets the intended spraying-system requirements
Whether the 0–3 km/h travel speed is suitable for the operation
Whether four-wheel drive and in-place steering are appropriate for the field environment
Whether the remote-controlled operating method meets the buyer's operating procedures
Whether additional nozzle, pump, flow-rate or control-system information is required
Suitability should be based on the actual crop, field conditions, spraying task and required configuration.
Professional buyers should evaluate the 3WYP-50B according to the actual spraying application rather than selecting the machine based only on tank capacity.
First, identify the intended agricultural spraying task and operating environment. Then confirm whether the 50 L tank capacity and specified boom configuration meet the application requirements.
The drive and steering configuration should also be considered. The 3WYP-50B uses four-wheel drive and in-place steering, which should be evaluated against the buyer's field layout and mobility requirements.
The selected spray boom should be confirmed before ordering. The product information specifies a 2000 mm vertical spray boom height and a 3500 mm horizontal spray boom length as an optional configuration.
For procurement, buyers should also request the relevant technical documentation and confirm any additional spraying-system requirements that are not included in the supplied specifications.
Routine maintenance considerations should be based on the actual machine configuration and the manufacturer's technical documentation.
For a spraying machine, buyers should pay particular attention to the condition of the spray system, spray tank, boom assembly, drive system and steering system during routine operation.
The available product information does not specify maintenance intervals, replacement schedules or service procedures. Buyers should request the manufacturer's maintenance documentation before operation and follow the applicable instructions for the supplied configuration.
Before purchasing the 3WYP-50B, B2B buyers should confirm the following information:
Product model and exact product configuration
Remote-controlled operating method
Four-wheel drive configuration
In-place steering configuration
50 L spray tank capacity
0.2–0.5 MPa working pressure range
2000 mm vertical spray boom height
Whether the optional 3500 mm horizontal spray boom is required
Specified 0–3 km/h travel speed
Matching power specification of 400+400 W
Overall dimensions of 1050 * 580*1650 mm
Additional pump, nozzle and flow-rate information if required for the application
Technical documentation for the final configuration
Operator and remote-control requirements
Maintenance documentation
Available customization or configuration options, where applicable
Packaging and shipping requirements for the destination market
For a quotation, buyers should provide the intended application, crop type, field conditions, desired boom configuration, required quantity, target market and delivery destination where applicable.
HeFei Duojia Agricultural Technology Co., Ltd. is a Chinese manufacturer specializing in intelligent agricultural equipment and precision fertilizer and pesticide application technologies. Since 2012, the company has developed agricultural machinery, intelligent spraying systems, precision application components and customized equipment solutions. Duojia and its subsidiaries have applied for more than 230 national patents covering precision spraying, intelligent agricultural machinery, variable-rate application, control systems and related technologies. Its R&D capabilities cover complete agricultural equipment and core components, supporting development in plant protection, precision spraying and agricultural field management.
The 3WYP-50B is a remote-controlled self-propelled agricultural sprayer with four-wheel drive, in-place steering and a 50 L spray tank.
Yes. The specified structure type is remote-controlled self-propelled, and the product is designed as a remote-controlled agricultural spraying machine.
The specified spray tank capacity is 50 L.
The specified drive type is four-wheel drive.
The specified steering type is in-place steering.
The machine has a specified vertical spray boom height of 2000 mm. A horizontal spray boom with a length of 3500 mm is identified as an optional configuration.
The specified working pressure range is 0.2–0.5 MPa.
Not necessarily. The supplied product information specifies remote-controlled operation but does not specify autonomous navigation, GPS, machine vision or automatic path planning. Buyers requiring such functions should confirm them separately.
For product specifications, quotation or configuration information for the 3WYP-50B, buyers can provide:
Intended agricultural application
Crop type
Field conditions
Required spray boom configuration
Required quantity
Target market
Delivery destination
Any additional spraying-system requirements
You can also request technical documentation and discuss the required product configuration with the manufacturer before procurement.
